| 브랜드 이름: | Chenghao Optoelectronic | 인증: | CE 、RoHS、FCC |
|---|---|---|---|
| Model Number: | CH400OL001A | 문서: | 제품 설명서 PDF |
|
상세 정보 |
|||
| OLED 인터페이스: | 미피 | 작동 온도: | -10 ~ +60 ℃ |
|---|---|---|---|
| 활성 영역 크기: | 65.448*75.144mm | FPC 핀 번호: | 38 |
| 보관 온도: | -20 ~ +70 ℃ | 보는 방향: | 무료 |
| 화면 크기: | 3.92인치 | 디스플레이 유형: | 3.92인치 아몰레드 |
| 강조하다: | Sunlight readable OLED display,4 inch high resolution OLED,Outdoor electronic device OLED module |
||
제품 설명

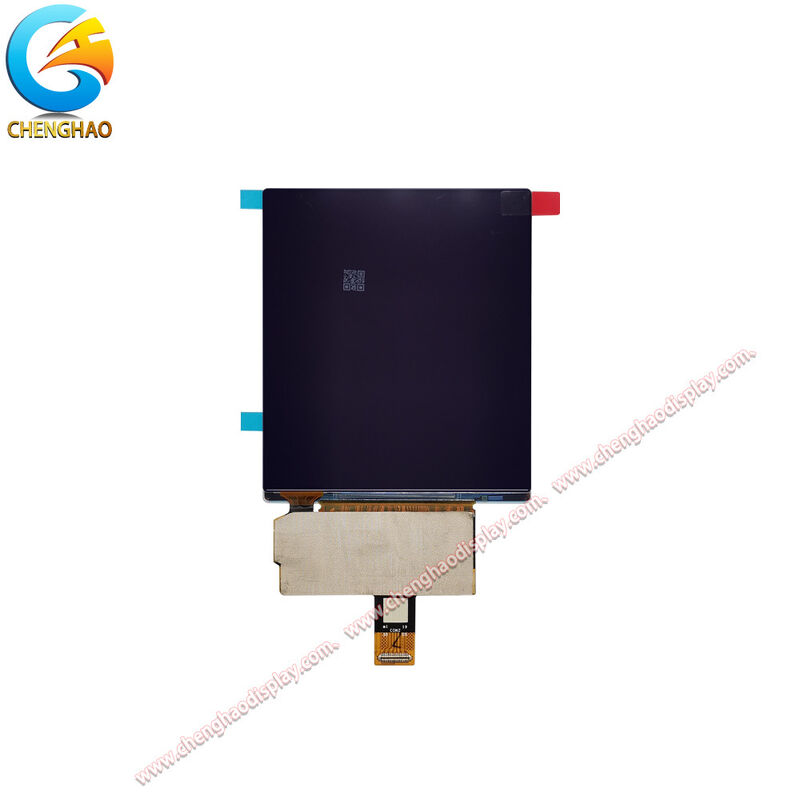

| The CH400OL001A is a 4-inch AMOLED display module (3.92-inch effective area) designed for superior visual performance in outdoor electronic devices. Featuring a native 1080x1240 high resolution, this module ensures sharp and clear visualizations of complex data and high-definition graphical interfaces in professional environments. Employing active-matrix OLED technology, the display achieves exceptional contrast and 600 cd/m² brightness, making it an attractive "sunlight-visible OLED" solution for semi-outdoor and high ambient light applications. |  |
|
The self-emissive nature of AMOLED pixels ensures deep blacks and vibrant colors, eliminating the need for a bulky backlight module and achieving an ultra-thin 1.2mm form factor, ideal for compact hardware integration. For seamless interaction, the module integrates an FT*** capacitive touch IC, providing a responsive and durable user interface for handheld instruments. Data transmission is processed via a high-speed MIPI interface, optimizing power efficiency, crucial for battery-powered portable devices. With its full-viewing angle and RoHS compliance, the CH400OL001A is the top choice for engineers seeking a space-saving display solution that does not sacrifice optical clarity or reliability under harsh conditions. |
| Display Type | 3.92" AMOLED |
| Resolution | 1080*1240 Dots |
| Viewing Direction | Free |
| Module Size | 67*80*0.7 Mm |
| OLED Interface | MIPI |
| Operating Temperature | -10 ~ +60 ℃ |
| FPC Pin numbers | 38 |
| Screen Brightness | 600 Cd/m2 |
| Storage Temperature | -20 ~ +70 ℃ |
| Screen Size | 3.92 Inch |
Leveraging our team of 125 engineers and automated production lines, we provide comprehensive B2B support:
Q: Can this OLED be used in direct sunlight?
A: While 600 nits is excellent for high-ambient light, the AMOLED’s high contrast ratio significantly improves the perceived readability compared to standard LCDs. For extreme sunlight, we recommend our Anti-Reflective (AR) coating customization.
Q: What is the benefit of the MIPI interface for outdoor gear?
A: The MIPI interface provides high-speed data transmission with minimal power draw, which is essential for maximizing the battery life of portable outdoor devices.
Q: Is the touch screen compatible with outdoor use?
A: Yes, the FT*** touch IC is designed for reliability. We can further customize the cover glass and sensitivity to ensure it performs well in varied outdoor conditions.
