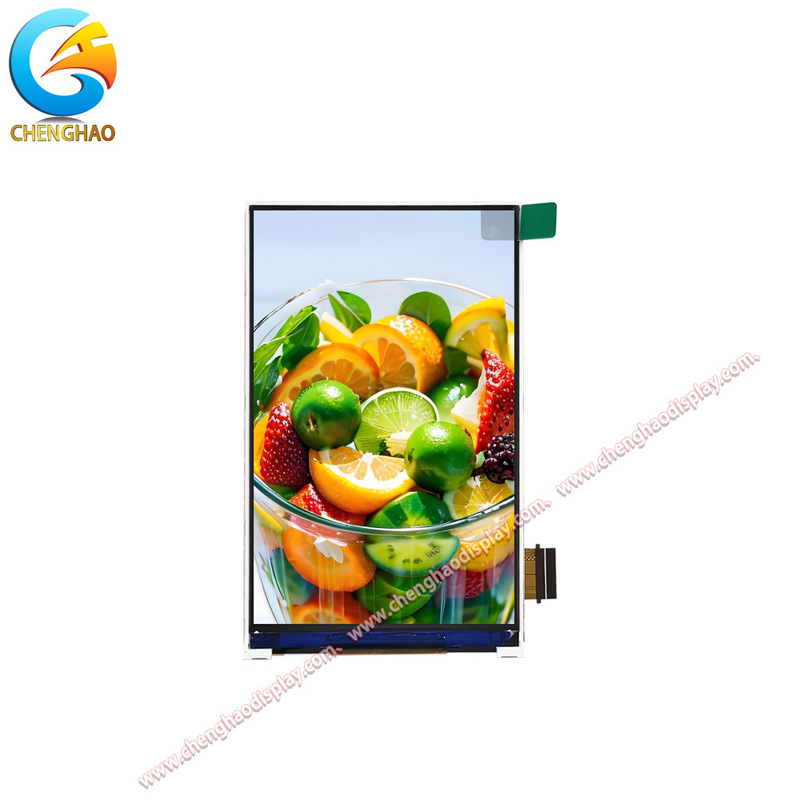

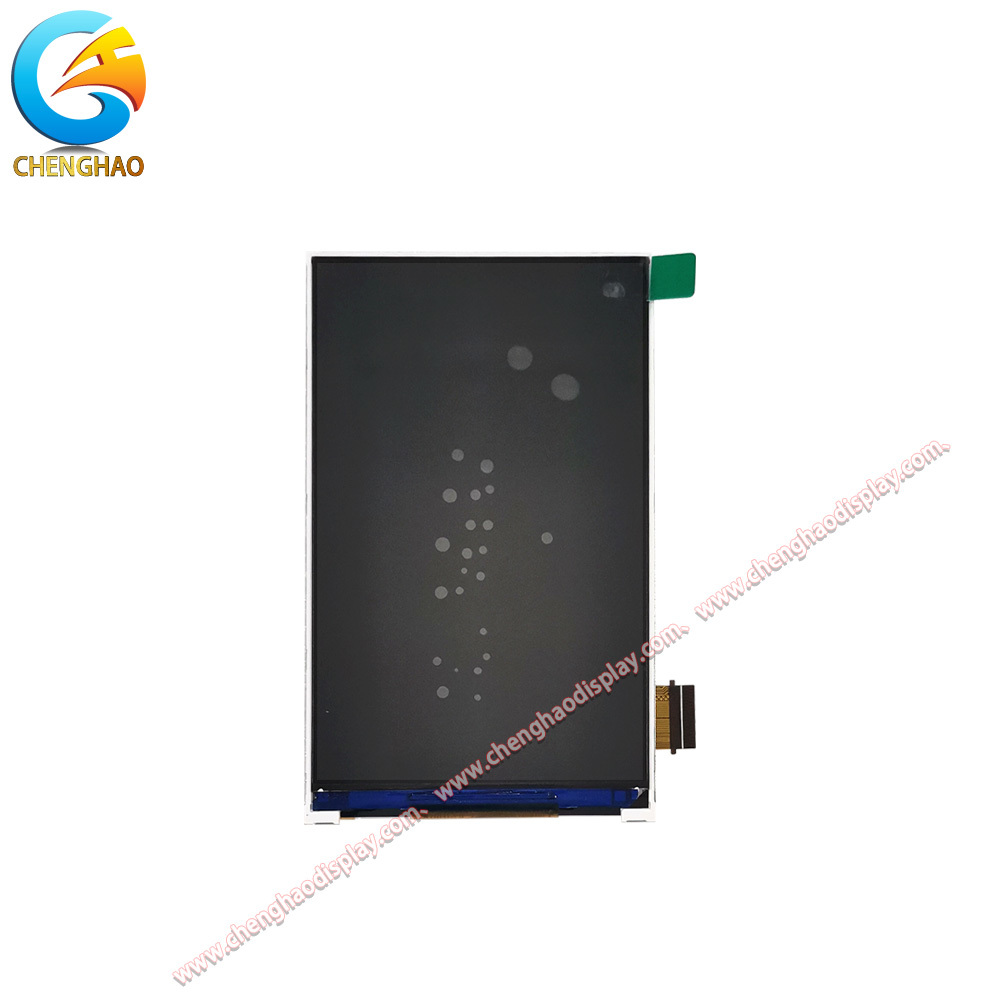

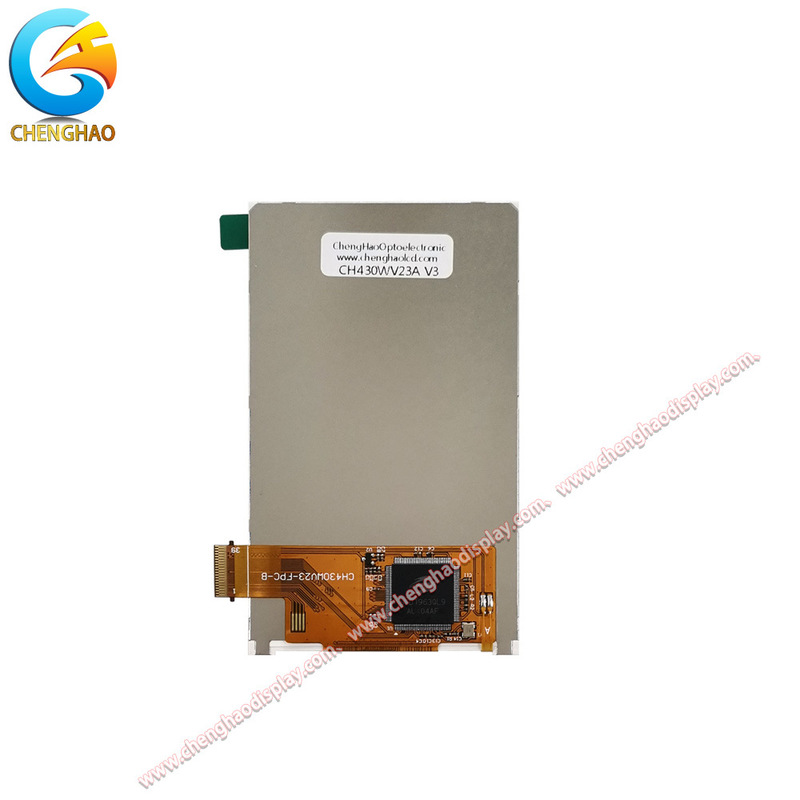

4.3 Inch Colorful Display 480x800 Vertical Lcd and Tft with 39Pins MCU Interface

Minimum Order Quantity : 100 Pcs Packaging Details : All The Products Are Packed In Right Way To Keep It Safe. For Small Sizes Of Products We Use Tray + Carton, For Bigger Sizes We Use Foam Slot + Carton. We Also Design Packages According To Customers' Requirements
Delivery Time : 3~7 Days Payment Terms : TT
Supply Ability : 300K Pcs/month
브랜드 이름: Chenghao Optoelectronic 인증: RoHS,CE、FCC
Model Number: CH400WV23A 문서: 제품 설명서 PDF

상세 정보

화면 크기: 4.3 인치 LCD 인터페이스: MCU
작동 온도: -20 ~ +70℃ 활성 영역 크기: 56.16x93.6mm
화면 밝기: 300 CD/M2 디스플레이 모드: IPS / 전달 가능한 /는 정상적으로 검어집니다
모듈 크기: 61.56x104.65x2.55mm 시청 방향: 80/80/80/80
강조하다:

4.3 inch TFT LCD display

,

480x800 vertical LCD screen

,

39pins MCU interface LCD

제품 설명

Product Description: The CH430WV23A is a 4.3-inch IPS TFT LCD module designed to deliver superior display quality, durability, and performance for industrial and embedded applications. Featuring a resolution of 480×800 pixels, it provides sharp image clarity and smooth color transitions, ensuring precise and vivid visual output. The IPS technology offers a full viewing angle of 80/80/80/80 (U/D/L/R), allowing clear visibility from any direction without color distortion,
